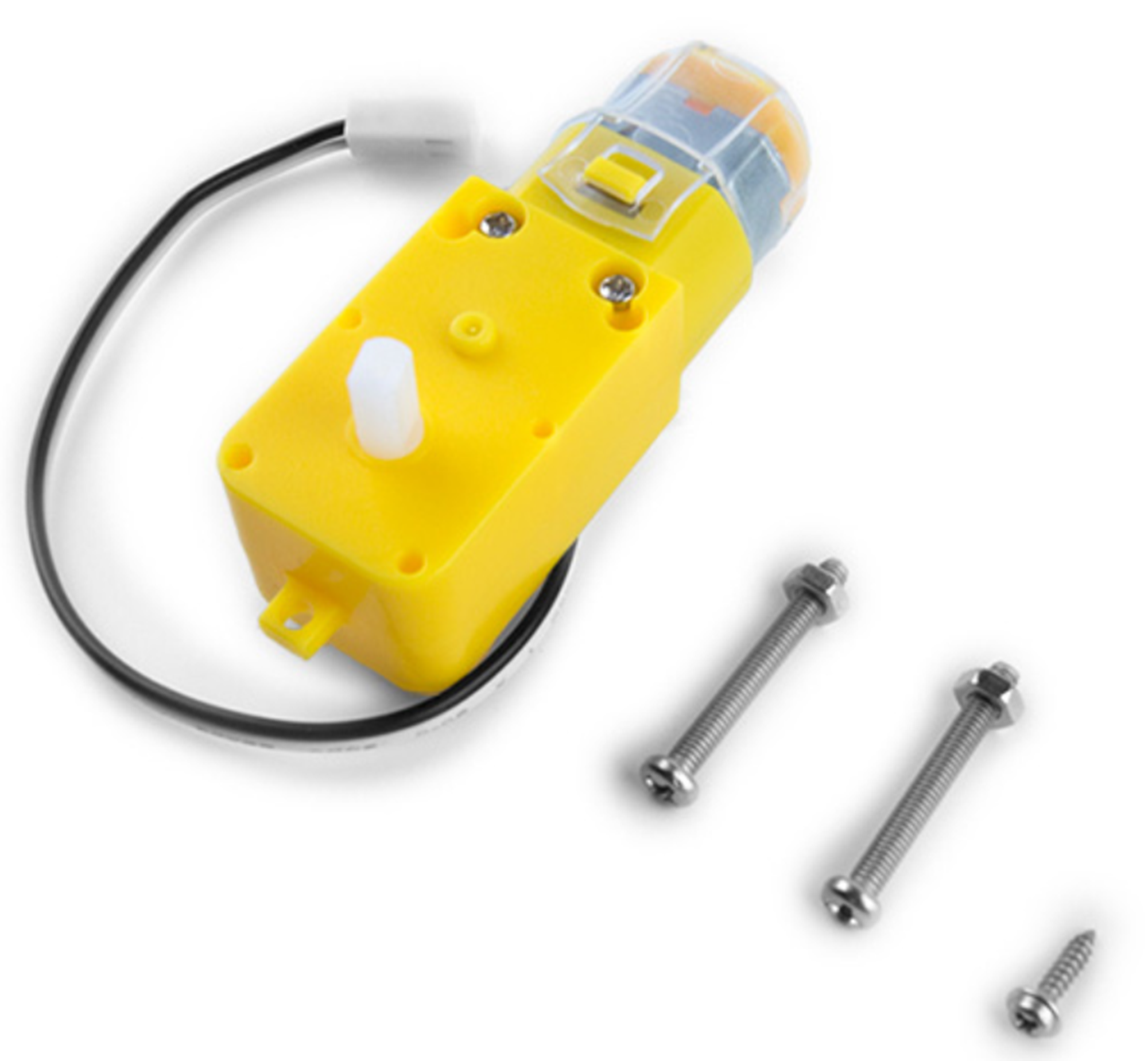

High-Speed TT Motor
Makeblock high-speed TT motor is a plastic gearbox motor launched by Makeblock. You can use high-speed TT motors in combination with Makeblock plastic timing pulleys 62T or 90T to build wheel mechanisms in MakeX competitions or various DIY projects.
Specifications
| Item | Description |
|---|---|
| SKU | M2010003000 |
| Rate voltage | 6V DC |
| Operating voltage | 4–8 V DC |
| Current without load | ≤220mA |
| Current with rated load | ≤260mA |
| Rotational speed without load | 15000 RPM±10% |
| Rotational speed with rated load | 310 RPM±10% |
| Gear ratio | 1 : 48 |
| Operating temperature and humidity | –5℃ to + 40℃；15%RH–90%RH |
| Storage temperature and humidity | –10℃ to +50℃；15%RH–90%RH (no condensation) |

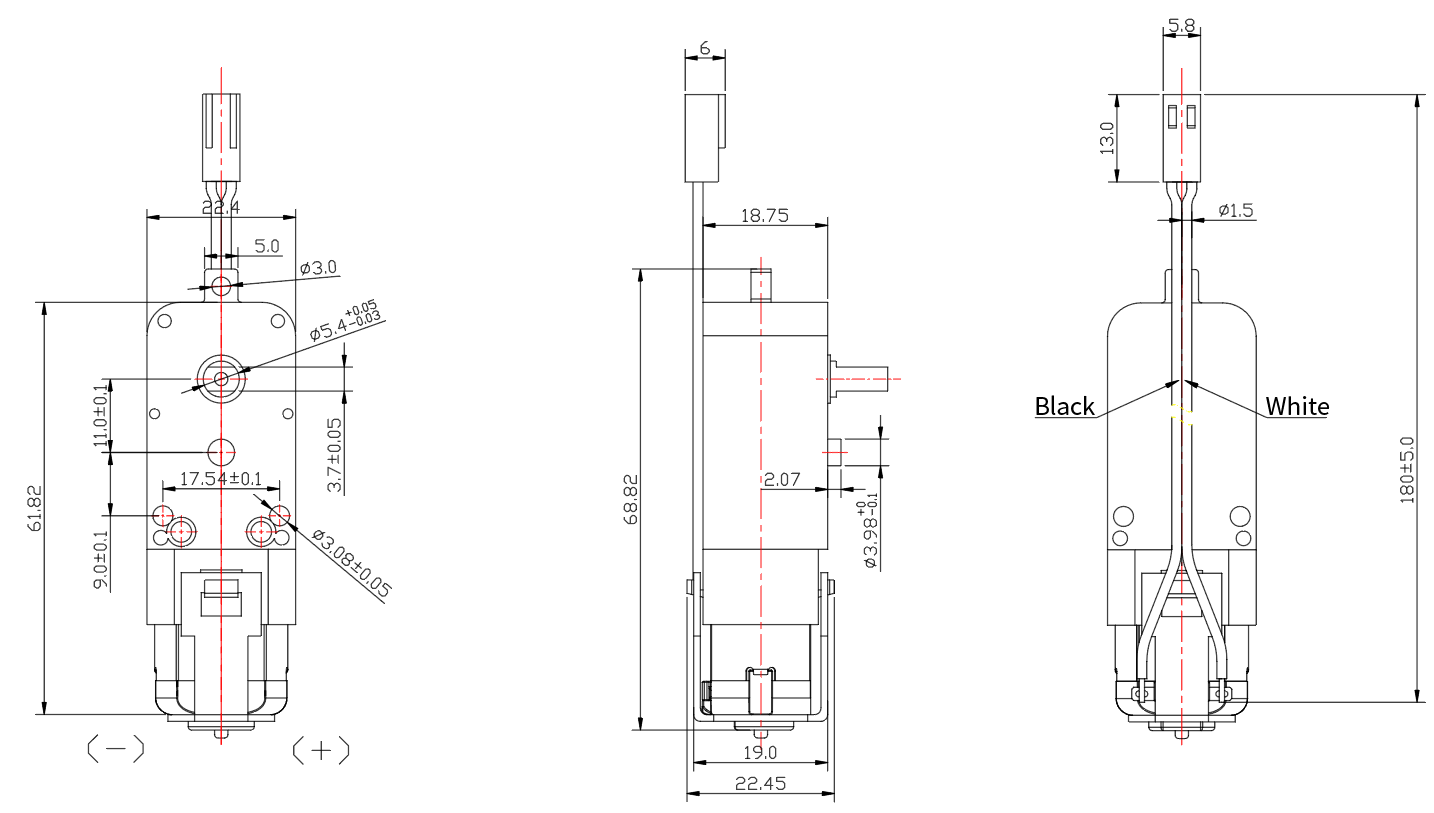

Structure and dimensions
