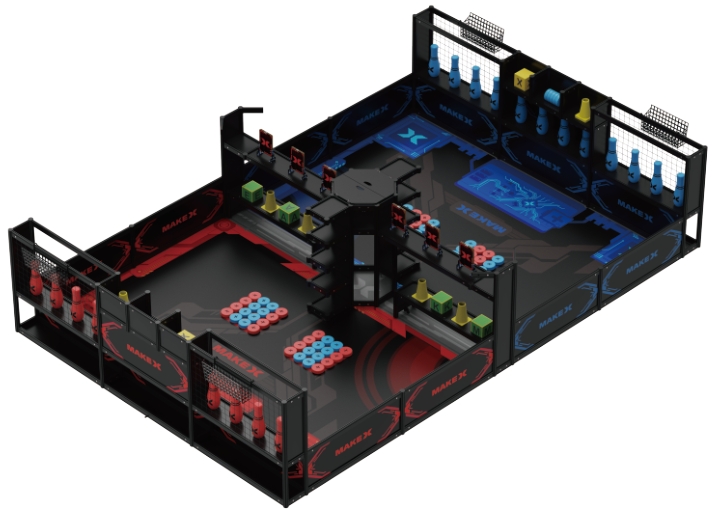

Introduction to the 2024 MakeX Challenge Ultimate Winner Arena and Frame
The kit does not include the MakeboX.
1. Basic information
| Name | 2024 MakeX Challenge Ultimate Winner Arena and Frame |
|---|---|
| SKU | P1090058 |
| EAN | 193122018630 |
| Package type | Paper box |
| Package size (mm) | 100×100×1580 (map) |
| 990×530×20 (metal net) | |
| 380×180×180 (hanging basket) | |
| 670×390×260 (bottles) | |
| 1000×290×120 (flat beams) | |
| 305×298×203 (flat beam locks) | |
| 1040×370×265 (other parts-1) | |
| 1000×290×120 (other parts-2) | |
| 864×442×175 (other parts-3) | |
| 1062×526×155 (other parts-4) | |
| 1030×75×78 (other parts-5) | |
| Gross weight (including packaging) | 155.22 kg (342.2 lb) |
| Others | Remote control and battery not included |
2. Overview
If this is your first MakeX Challenge competition, or if you would like to purchase a complete package for practice or hosting a MakeX competition, purchase the** 2024 MakeX Challenge Ultimate Winner Arena and Frame**.
3. Parts list
| Name | Quantity |
|---|---|
| Flat beam 160 | 92 |
| Flat beam 220 | 24 |
| Flat beam 293 | 18 |
| Flat beam 960 | 56 |
| Octagonal pillar-45 | 24 |
| Octagonal pillar-250 | 16 |
| Octagonal pillar-400 | 4 |
| Octagonal pillar-960 | 28 |
| Flat beam lock | 380 |
| Octagonal pillar cover | 144 |
| Flat beam cover | 4 |
| Polygonal board A | 2 |
| Polygonal board B | 2 |
| Short board A | 4 |
| Short board B | 12 |
| Short board C | 2 |
| Short board D | 10 |
| Short board E | 10 |
| Short board F | 12 |
| Long board A | 6 |
| Long board B | 4 |
| Long board C | 6 |
| Long board D | 4 |
| Long board E | 2 |
| Long board F | 2 |
| Long board G | 8 |
| Long board H | 2 |
| MakeX board blue & black | 8 |
| MakeX board red & black | 8 |
| MakeX sticker red/blue | 6 |
| Metal net | 4 |
| Hanging basket | 4 |
| Plate A | 12 |
| Plate B | 2 |
| Square beam 0808-056 | 12 |
| Beam 0808-024 | 6 |
| Beam 0412-036 | 12 |
| Beam 0412-092 | 12 |
| Slide beam 0824-144 | 6 |
| Hinge | 12 |
| Coil spring | 12 |
| Wheel | 4 |
| Screw M3*6 | 4 |
| Screw M4*8 | 64 |
| Screw M4*10 | 40 |
| Screw M4*16 | 60 |
| Screw M4*22 | 80 |
| Rectangular nut M4 | 32 |
| Hex lock nut M4 | 150 |
| Hex stud M4*32 | 16 |
| Plastic ring 472 mm | 18 |
| Plastic ring 473 mm | 25 |
| Shaft collar | 4 |
| Flange bearing | 24 |
| Map | 1 |
| Double-sided fabric tape | 1 |
| Transparent tape | 1 |
| 3M double-sided nano tape | 1 |
| Bottle blue & black | 12 |
| Bottle red & black | 12 |
| Yellow cube | 6 |
| Cube sticker A | 5 |
| Cube sticker B | 2 |
| Yellow cone | 6 |
| MakeX blue disc | 37 |
| MakeX red disc | 37 |
| Hex Allen key T30 | 3 |
| Screwdriver hex 2.5 mm & cross | 2 |
| Hex key 1.5 mm | 2 |
| Hex key 2.5 mm | 2 |
| Wrench 5 mm & 7 mm | 2 |
4. Assembly instructions
After checking the number of parts, refer to the following document to assemble the 2024 MakeX Challenge Ultimate Winner Arena. 2024 MakeX Challenge Ultimate Winner Arena Assembly Instructions.pdf
