Introduction to the 2024 MakeX Challenge Upgrade Kit
1. Basic information
| Name | 2024 MakeX Challenge Upgrade Kit |
|---|---|
| SKU | P1090057 |
| EAN | 193122018661 |

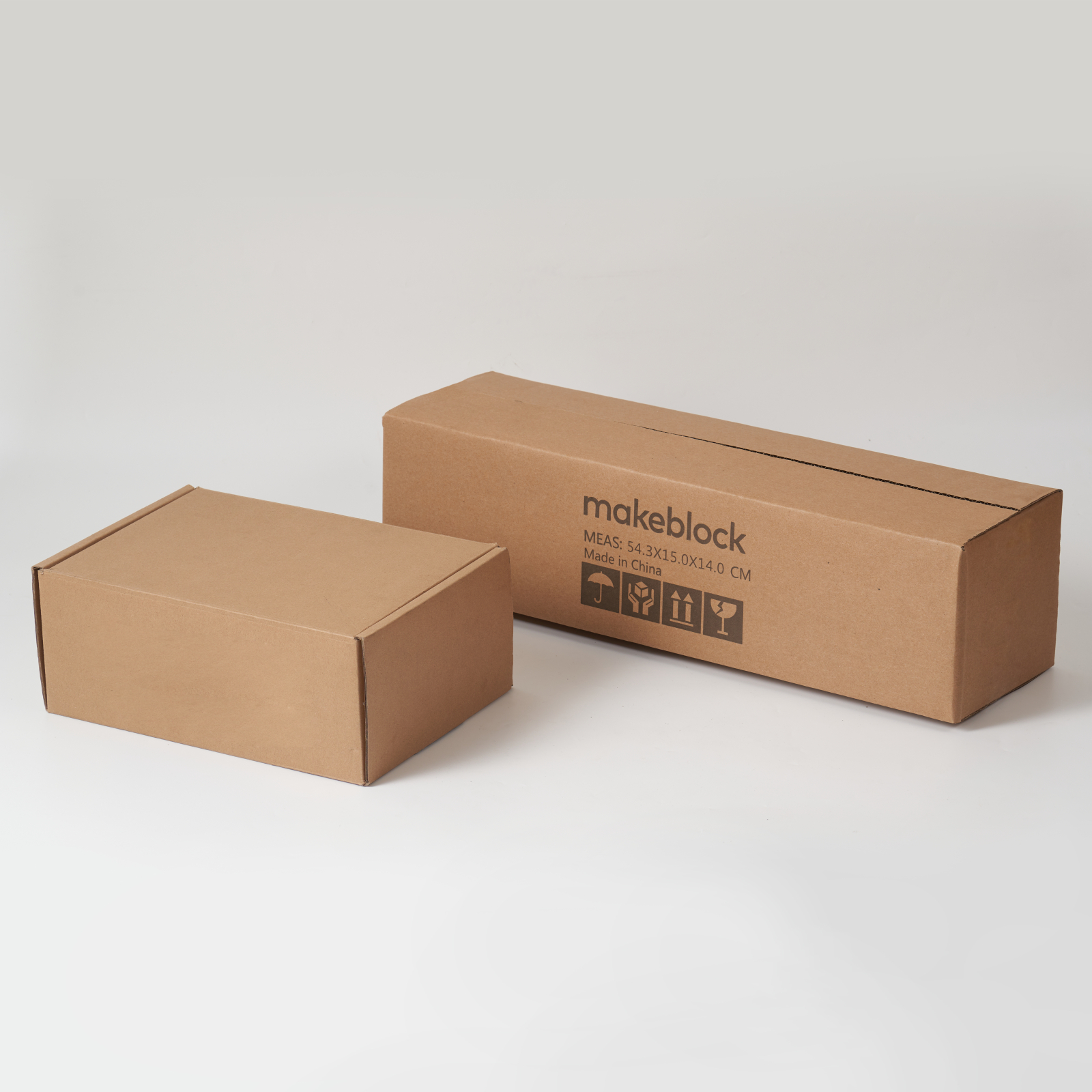

| Package type | Paper box |
| Package size (mm) | 543×150×140 (blue parts) |
| 298×203×118 (other parts) | |
| Gross weight (including packaging) | 8.3 kg (18.3 lb) |
| Others | Battery included, remote control not included |
2. Overview
The 2024 MakeX Challenge Upgrade Kit can work with the 2022 MakeX Challenge Educational Competition Kit. Together, they constitute the 2024 MakeX Challenge Ultimate Winner Educational Competition Kit. This upgrade kit is suitable for those who want to customize their kit for the 2024 MakeX Challenge competition.
For more information, see Introduction to the 2024 MakeX Challenge Ultimate Winner Educational Competition Kit.

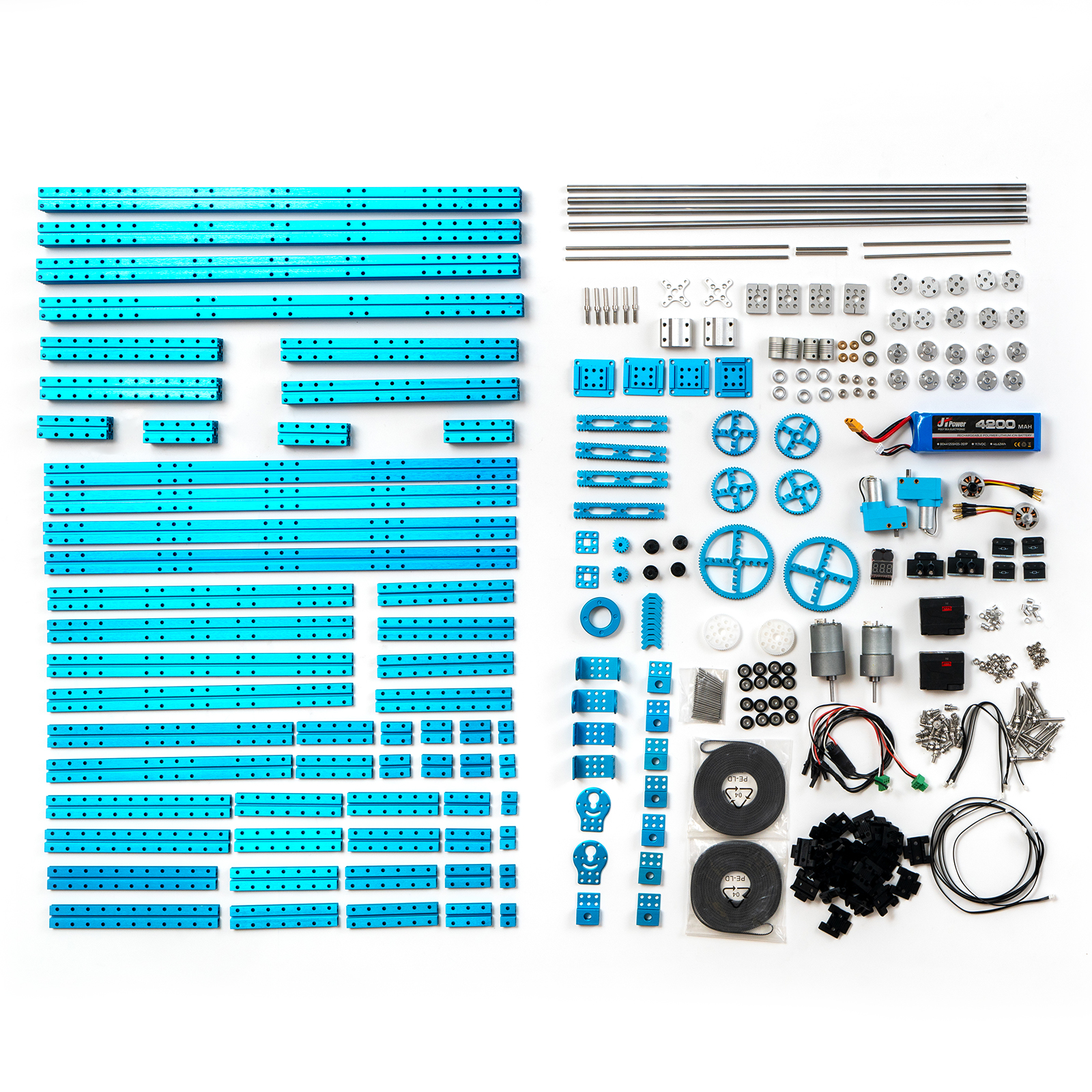

3. Parts list
| Name | Quantity | Documentation |
|---|---|---|
| 180 smart encoder motor | 2 | For technical information on 180 smart encoder motor, see 180 Smart Encoder Motor. |
| DC motor-37 (200 RPM) | 1 | For technical information on DC motor-37, see DC Motor-37. |
| DC motor-37 (50 RPM) | 1 | |
| Servo MS-12A | 2 | For technical information on servo MS-12A, see Smart Servo MS-12A. |
| Brushless motor tightened clockwise | 1 | For technical information on brushless motor, see Direct-Current Brushless Motor. |
| Brushless motor tightened counterclockwise | 1 | |
| Extend module | 4 | For technical information on extend module, see Extend Module. |
| Dual RGB color sensor | 2 | For technical information on dual RGB color sensor, see Dual RGB Color Sensor. |
| Slide beam-016 | 6 |
- The kit uses CNC machined aluminum connecting pieces for strong structures and tight fits.
- The kit is compatible with a wide range of industry standard parts, making it perfect for various industrial applications.
For information on beams (16 types, 54 items), see Slide Beam 0824 Beam 0808 Square Beam 2424
For information on brackets (5 types, 16 items), see Brackets. | | Slide beam-032 | 6 | | | Slide beam-048 | 4 | | | Slide beam-080 | 2 | | | Slide beam-096 | 2 | | | Slide beam-112 | 4 | | | Slide beam-144 | 4 | | | Slide beam-176 | 2 | | | Slide beam-192 | 2 | | | Slide beam-256 | 2 | | | Slide beam-320 | 4 | | | Slide beam-496 | 4 | | | Square beam 2424-072 | 4 | | | Square beam 2424-184 | 2 | | | Square beam 2424-248 | 2 | | | Square beam 2424-504 | 4 | | | Bracket P3 | 8 | | | Mounting bracket | 2 | | | Rudder bracket | 2 | | | DC motor-37 bracket | 2 | | | Brushless motor bracket | 2 | | | Brushless motor ESC | 2 | | | Track | 50 | | | Track axle 30 mm | 50 | | | Servo-assisted shaft | 4 | | | Threaded shaft 439 mm | 6 | | | Low voltage buzzer alarm | 1 | | | Stiffener 1616-008-M4 | 10 | | | 3S Li-Po battery | 1 | | | Double gear rack 31T | 4 | | | Gear 16T | 2 | | | Gear 48T | 4 | | | Gear 80T | 2 | | | Roller | 16 | | | Plastic timing pulley 18T | 4 | | | Plastic timing pulley 62T | 2 | | | Timing pulley slice | 16 | | | Belt connector | 2 | | | Open-ended timing belt (5 m) | 2 | | | Aluminum sleeve 464 mm | 16 | | | Aluminum sleeve 466 mm | 8 | | | Linear motion slide unit | 2 | | | Sliding block A1 | 4 | | | mBuild cable (200 mm) | 4 | | | mBuild cable (600 mm) | 3 | | | D shaft 456 mm | 2 | | | D shaft 4160 mm | 2 | | | Shaft D8496 mm | 4 | | | Shaft D4240 mm | 2 | | | Shaft clamping hub 8 mm | 4 | | | Bearing F688ZZ | 2 | | | Flexible coupling 44 mm | 4 | | | Shaft collar 4 mm | 6 | | | Shaft collar 8 mm | 6 | | | Shaft connector V3.0 | 10 | | | Shaft connector | 10 | | | Combination screw M48 | 30 | | | Combination screw M410 | 30 | | | Combination screw M414 | 30 | | | Combination screw M416 | 30 | | | Combination screw M420 | 30 | | | Combination screw M430 | 30 | | | Combination screw M435 | 30 | | | Combination screw M440 | 30 | | | Headless screw M35 | 20 | | | Headless screw M38 | 20 | | | Flat cross screw M3*8 | 20 | | | Hex lock nut M3 | 20 | | | Hex nut M3 | 20 | | | Hex nut M4 | 20 | | | Hex lock nut M4 | 20 | |
4. About the competition
MakeX is an international robotics competition and education platform that promotes multidisciplinary learning within the fields of science and technology. It aims at building a world where STEAM education is highly appreciated and where young people are passionate about innovation by engaging them in activities such as exciting robotics competitions, STEAM carnivals, tech events, and educational conferences.
MakeX Challenge is a highly competitive event for high school and vocational school students aged 11-18 years. This event, with its simple and easy-to-understand rules, offers an exciting spectacle and enriches the overall experience of participants. Through the design, construction, and programming of large robots, the contestants enhance their design and multi-dimensional thinking skills. Additionally, the event encourages the development of logical thinking, strategic analysis, teamwork, and decision-making abilities.
To view information about registration, entry requirements, and available competitions, visit www.makex.cc/en or contact us by email: makex_overseas@makeblock.com (overseas)
makex@makeblock.com (China)
