Getting Started with the 2024 MakeX Challenge Ultimate Winner Educational Competition Kit
Thank you for choosing the 2024 MakeX Challenge Ultimate Winner Educational Competition Kit. If you are using this kit for the first time, we recommend that you read these instructions carefully to get the most out of it.

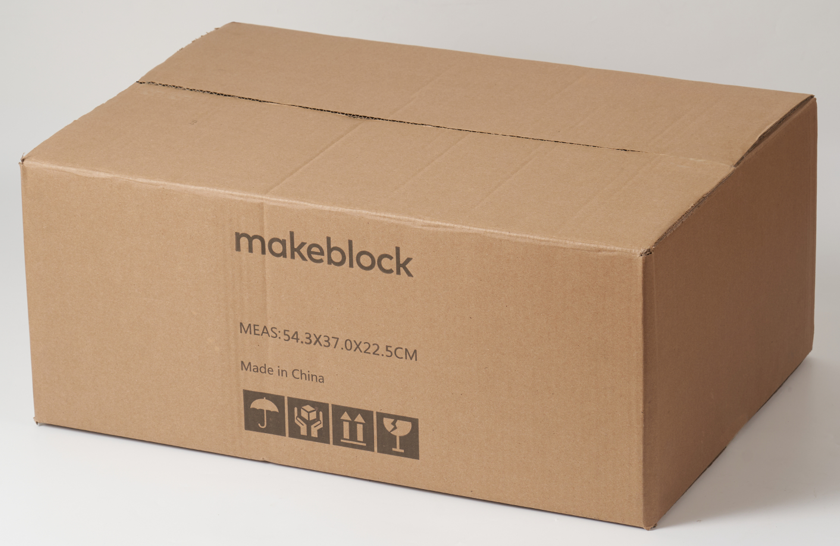

1. Unpack and check

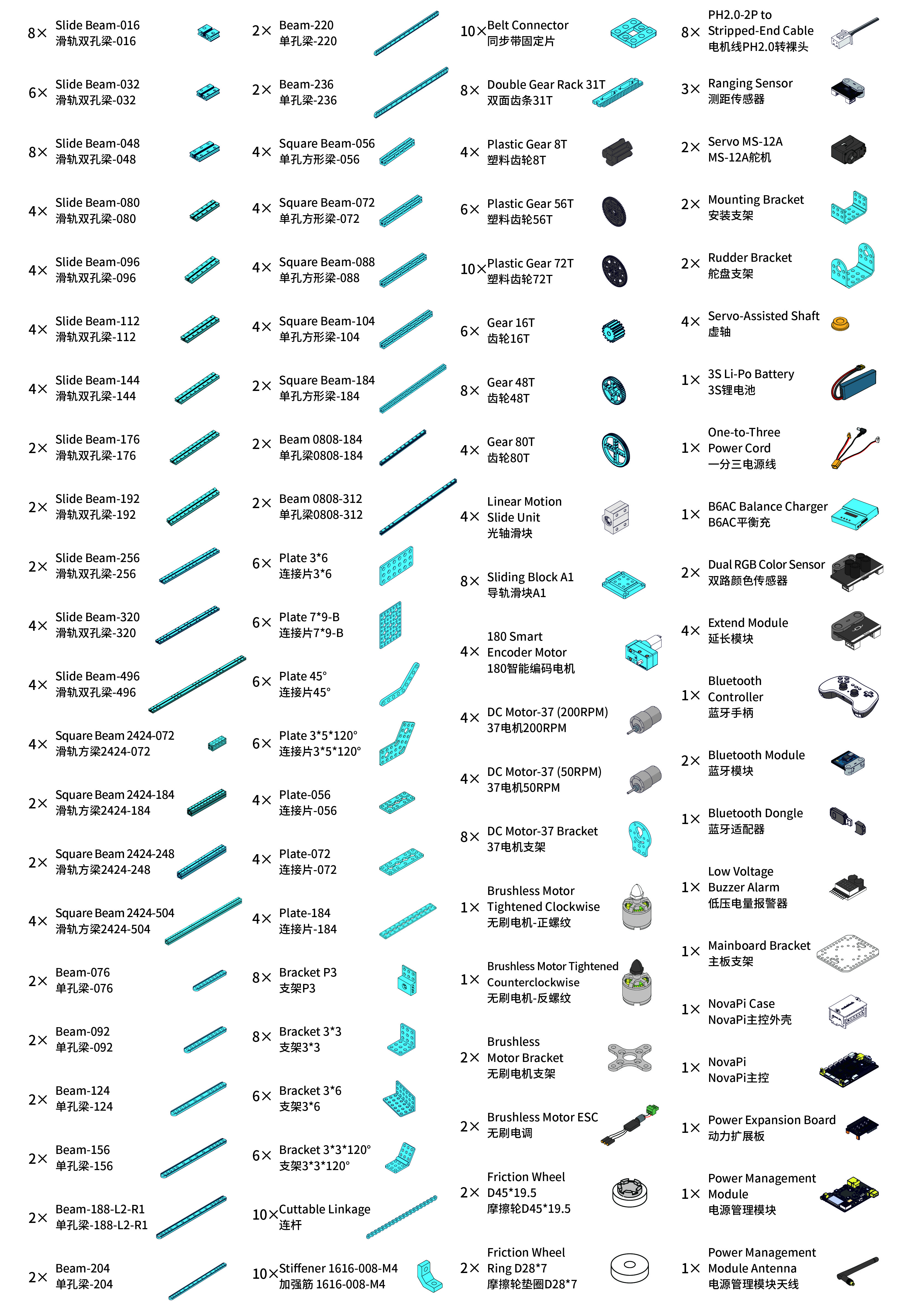

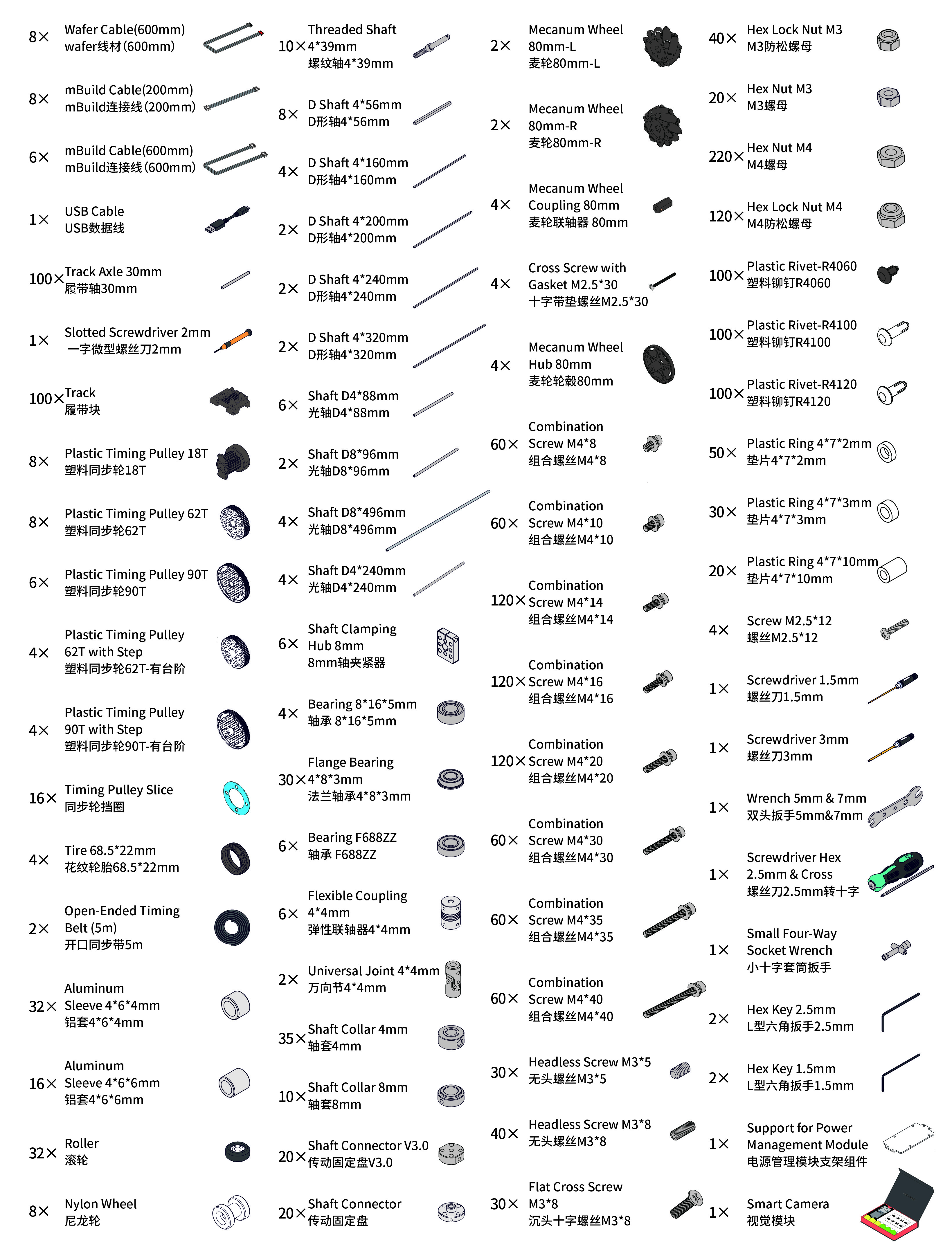

Make sure the following parts are included in the kit. If there is any missing part, contact our after-sales service or distributors.
:::warning
Note: Keep the parts properly after each use so that you can reuse them in other projects.
:::
2. Learn about the main components
The kit includes a main control board named NovaPi, a power expansion board and a power management module. The power management module can work with the MakeboX to monitor the progress of this event. NovaPi and the power expansion board work together to power and control other electronic parts, including encoder motors, DC motors, servos, and sensors.
| Name | Quantity | Documentation |
|---|---|---|
| NovaPi | 1 | For technical information on NovaPi, see NovaPi. |
| Power expansion board | 1 | For technical information on power expansion board, see Power Extension Board (NovaPi). |
| Power management module | 1 | For technical information on power management module, see Power Management Module V2.0. |
| 180 smart encoder motor | 4 | For technical information on 180 smart encoder motor, see 180 Smart Encoder Motor. |
| DC motor-37 (200 RPM) | 4 | For technical information on DC motor-37, see DC Motor-37. |
| DC motor-37 (50 RPM) | 4 | |
| Servo MS-12A | 1 | For technical information on servo MS-12A, see Smart Servo MS-12A. |
| Brushless motor tightened clockwise | 1 | For technical information on brushless motor, see Direct-Current Brushless Motor. |
| Brushless motor tightened counterclockwise | 1 | |
| Bluetooth dongle | 1 | For the operation guide of Bluetooth dongle, see Wireless Adapter. |
| Bluetooth controller | 1 | For technical information on Bluetooth controller, see Bluetooth Controller. |
| Bluetooth module | 2 | For technical information on Bluetooth module, see Bluetooth. |
| Smart camera | 1 | For technical information on smart camera, see Smart Camera. |
| Extend module | 4 | For technical information on extend module, see Extend Module. |
| Ranging sensor | 3 | For technical information on ranging sensor, see Ranging Sensor. |
| Dual RGB color sensor | 2 | For technical information on dual RGB color sensor, see Dual RGB Color Sensor. |

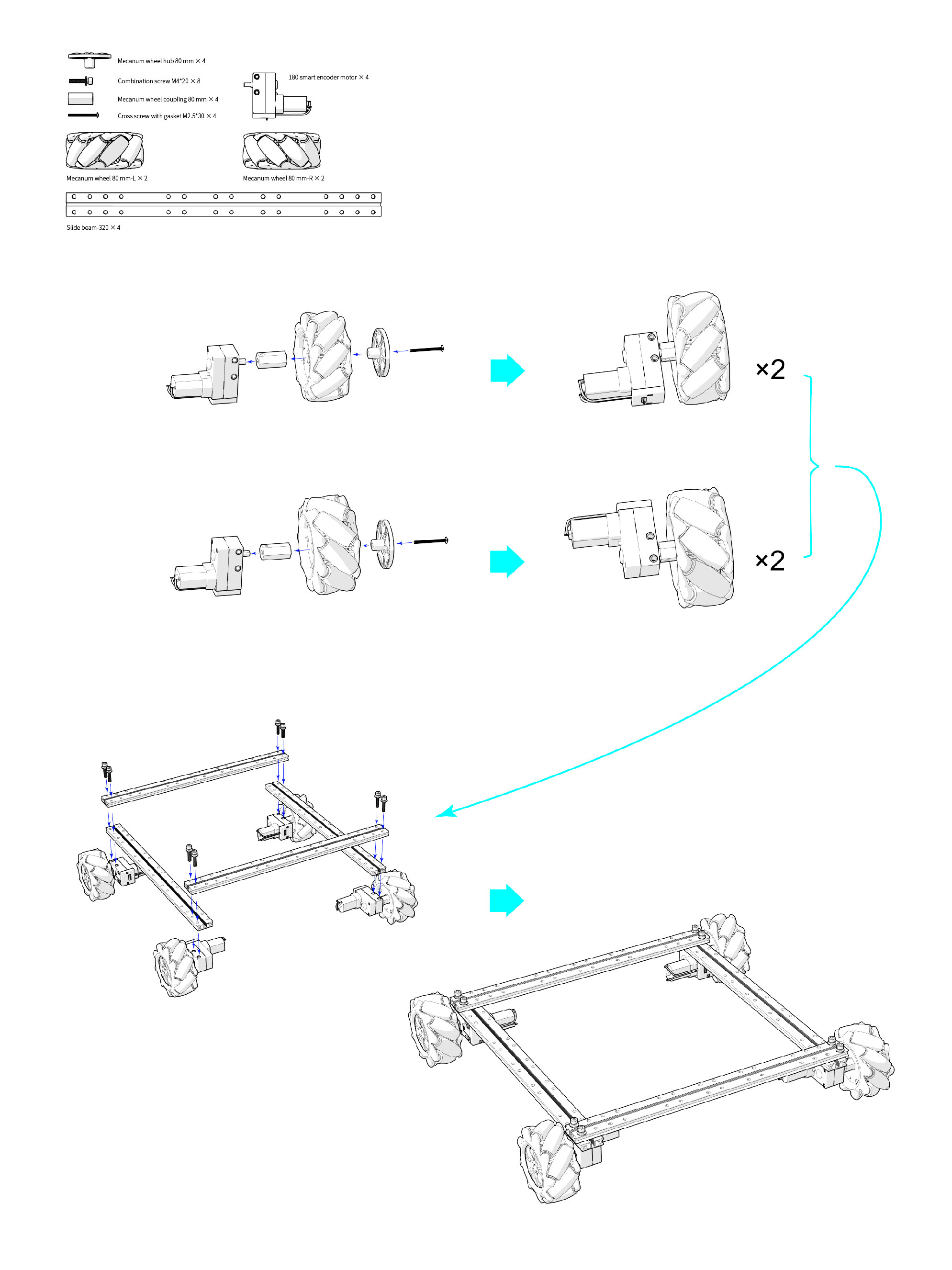

Simple chassis assembly
3. Explore beyond
3.1 Programming
You can use the parts to build your own robot and program it using mBlock 5 to bring your ideas to life.
3.2 Get more hardware
There is a wide range of peripherals that can be added to the kit to bring your ideas to life. Contact us if you want to take them home.
4. About the competition
MakeX is an international robotics competition and education platform that promotes multidisciplinary learning within the fields of science and technology. It aims at building a world where STEAM education is highly appreciated and where young people are passionate about innovation by engaging them in activities such as exciting robotics competitions, STEAM carnivals, tech events, and educational conferences.
MakeX Challenge is a highly competitive event for high school and vocational school students aged 11-18 years. This event, with its simple and easy-to-understand rules, offers an exciting spectacle and enriches the overall experience of participants. Through the design, construction, and programming of large robots, the contestants enhance their design and multi-dimensional thinking skills. Additionally, the event encourages the development of logical thinking, strategic analysis, teamwork, and decision-making abilities.
To view information about registration, entry requirements, and available competitions, visit www.makex.cc/en or contact us by email: makex_overseas@makeblock.com (overseas)
makex@makeblock.com (China)
5. Online support
If you encounter any product quality issues or find any parts missing when you open the package, contact us for after-sales services at support@makeblock.com.
We would also appreciate it if you could give us your feedback on the product at cyber.list@makeblock.com.
6. More information
Introduction to the 2024 MakeX Challenge Ultimate Winner Educational Competition Kit Introduction to the 2024 MakeX Competitions and Kits mBlock 5 Online Help
