Introduction to the 2022 MakeX Challenge Arena
Includes only some of the parts and needs to be used with the 2020-2021 MakeX Challenge Arena for Intelligent Innovator.
1. Basic information

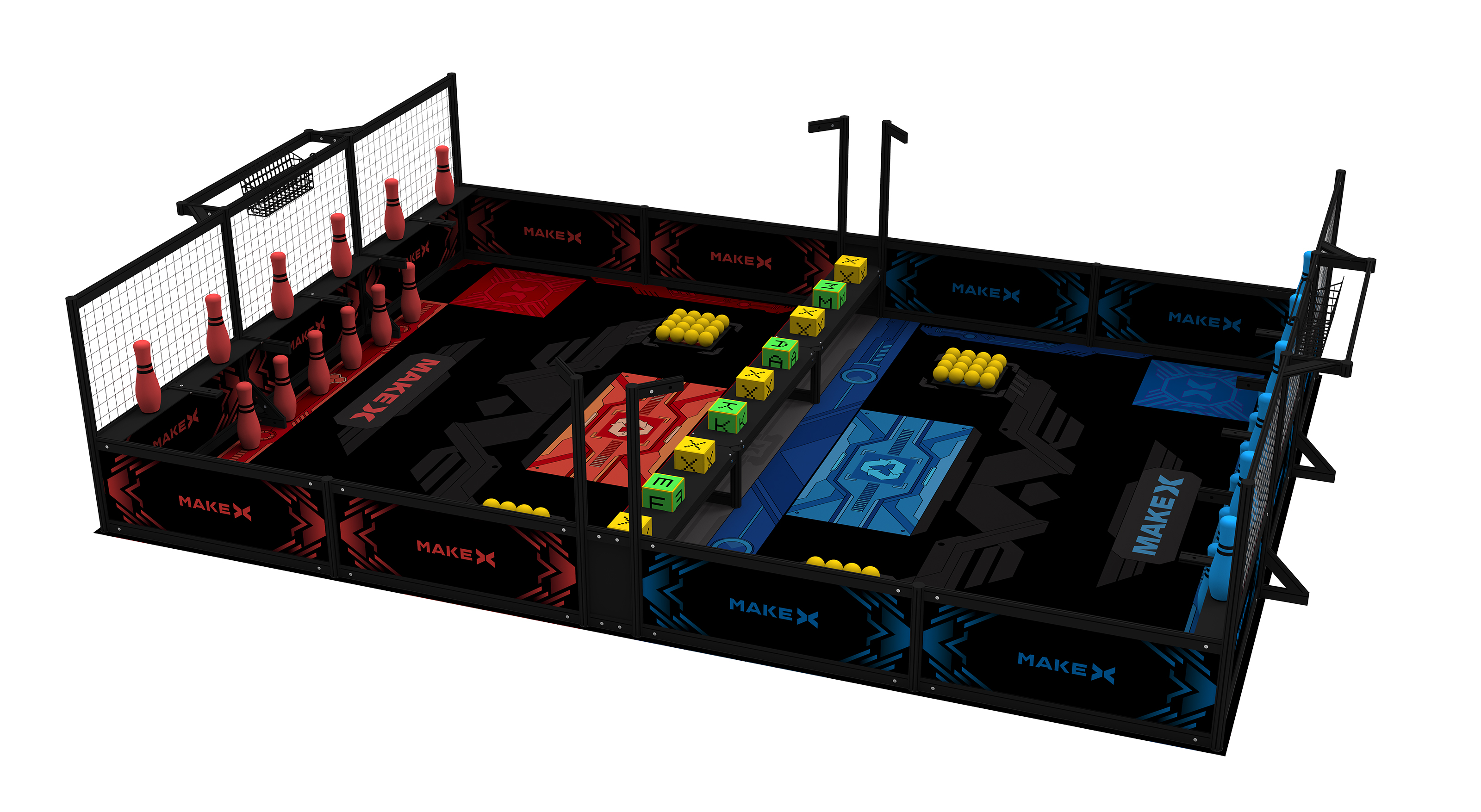

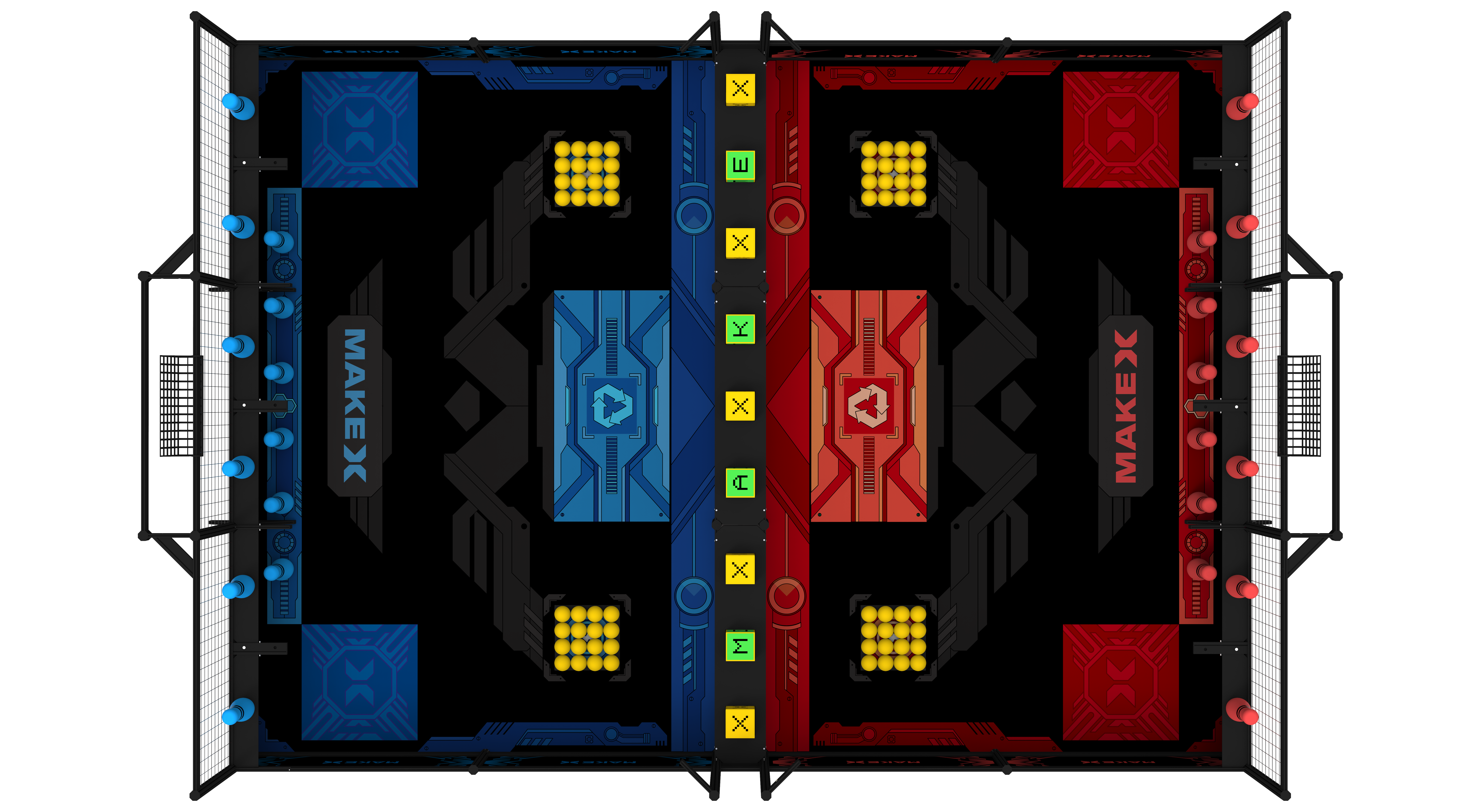

2022 MakeX Challenge Arena
| Name | 2022 MakeX Challenge Arena |
|---|---|
| SKU | P1090036 |
| EAN | 6928819513570 |
| Package type | Paper box |
| Package size | 663388255 mm |
| 290223100 mm | |
| 1000284112 mm*2 | |
| 1056384293 mm | |
| 522162329 mm | |
| 2.0980525 mm（Metal net） | |
| 390390185（Hanging Basket） | |
| 3mm（thickness）*92mm（inner diameter）*1590mm（length）(Map) | |
| Gross weight (including packaging) | 83.05KG (2929.5oz) |
| Others | Remote control and battery not included |
2. Overview
This kit contains the maps, frames, props, and other parts needed for the 2022 MakeX Challenge competition, which can be used for offline training and competition hosting.
3. Parts list
| Name | Quantity |
|---|---|
| Metal Net | 6 |
| Hanging Basket | 2 |
| Bottle Red&Black | 12 |
| Bottle Blue&Black | 12 |
| Flat Beam Lock | 126 |
| Flat Beam Lock 45°-Left | 12 |
| Flat Beam Lock 45°-Right | 12 |
| Octagonal Pillar-960 | 12 |
| Flat Beam 960 | 6 |
| Flat Beam 960 | 36 |
| Bottle Support | 12 |
| Cube Partition Board | 3 |
| Cube Cover Board | 3 |
| Black Protection Board | 2 |
| Makex Board Blue&Black | 7 |
| Makex Board Red&Black | 7 |
| Yellow Cube 120mm | 9 |
| Cube Sticker A | 5 |
| Cube Sticker B | 5 |
| Yellow Ball 70mm | 64 |
| Octagonal Pillar-400 | 4 |
| Octagonal Pillar-250 | 4 |
| Flat Beam 220 | 10 |
| Flat Beam 160 | 22 |
| Flat Beam 45° | 12 |
| Octagonal Pillar Cover | 28 |
| Flat Beam Cover | 22 |
| Allen Key | 3 |
| Rectangular Nut M4 | 32 |
| Screw M4*10 | 12 |
| Double-sided Fabric Tape | 1 |
| 3M Double-sided Nano Tape | 1 |
| Octagonal Pillar-45 | 4 |
| Hook-and-Loop Fastener 1150*25mm (Loop) | 4 |
| Combination Screw M4*8 | 20 |
| Screwdriver Cross&2.5mm | 1 |
| Energy Innovator Map | 1 |
4. Assembly instruction
After checking the number of parts, refer to the following document to assemble the 2022 MakeX Challenge Arena. 2022 MakeX Challenge 碳锁先锋_场地搭建步骤_说明书_V1.0_D1.1.1_KD010420000_preview.pdf
5. More information
Getting started with the 2022 MakeX Challenge Educational Competition Kit：makeblock.com/en/docs/cyberpi/22challenge-start mBlock online help：makeblock.com/en/docs/cyberpi/mbot2-mobile-coding mBot2 operation guide: makeblock.com/en/docs/cyberpi/mbot2-start Introduction to the 2022 MakeX competitions and kits：makeblock.com/en/docs/cyberpi/22makex
