Introduction to the 2024 MakeX Explorer Upgrade Kit
1. Basic information
| Name | 2024 MakeX Explorer Upgrade Kit |
|---|---|
| SKU | P1090053 |
| EAN | 193122018623 |
| Package type | Plastic box |
| Package size (mm) | 420×305×160 |
| Gross weight (including packaging) | 3.36 kg (7.41 lb) |
| Others | Remote control and battery not included |
2. Overview
The 2024 MakeX Explorer Upgrade Kit can work with the 2022 MakeX Explorer Zero Carbon Educational Competition Kit. Together, they constitute the 2024 MakeX Explorer Digital Pioneer Educational Competition Kit. This upgrade kit is suitable for those who want to customize their kit for the 2024 MakeX Explorer competition.
For more information, see Introduction to the 2024 MakeX Explorer Digital Pioneer Educational Competition Kit.

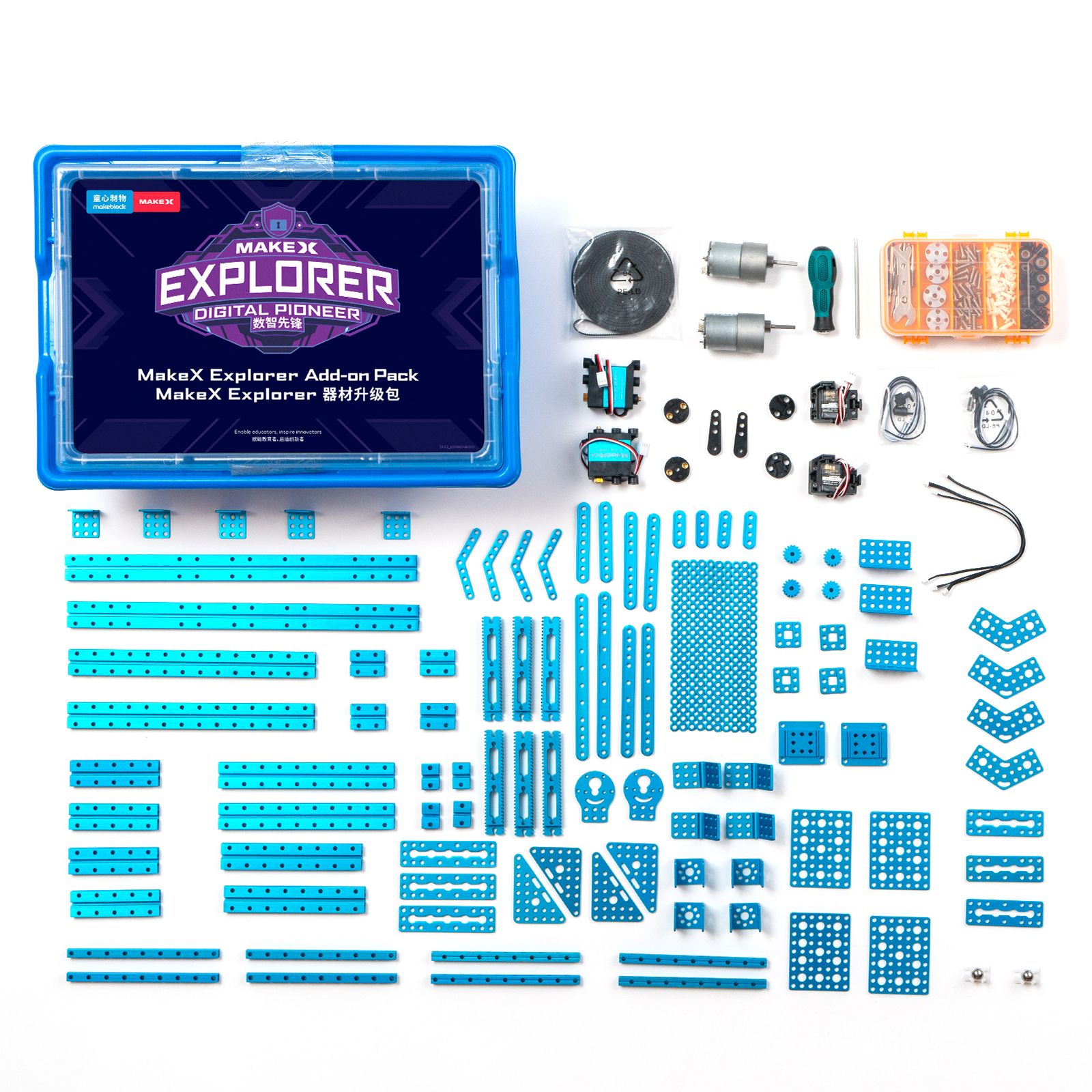

3. Parts list
| Name | Quantity | Documentation |
|---|---|---|
| Servo MS-1.5A | 2 | For technical information on servo MS-1.5A, see Servo MS-1.5A. |
| Servo MECDS-150 | 2 | For technical information on servo MECDS-150, see Servo MECDS-150. |
| DC motor-37 (50 RPM) | 1 | For technical information on DC motor-37, see DC Motor-37. |
| DC motor-37 (200 RPM) | 1 | |
| DC motor-37 bracket | 2 |
- The kit uses CNC machined aluminum connecting pieces for strong structures and tight fits.
- The kit is compatible with a wide range of industry standard parts, making it perfect for various industrial applications.
For information on beams (14 types, 40 items), see Slide Beam 0824 Beam 0808 Square Beam 2424
For information on brackets (5 types, 18 items), see Brackets.
For information on linkages (7 types, 32 items), see Linkages. | | PH2.0-2P to stripped-end cable | 2 | | | mBuild cable (200 mm) | 3 | | | Open-ended timing belt (5 m) | 1 | | | Belt connector | 4 | | | Timing pulley 18T | 4 | | | Gear 16T | 4 | | | Roller | 8 | | | Bracket 33120° | 4 | | | Bracket 33 | 5 | | | Bracket 36 | 3 | | | Bracket U1 | 4 | | | Plate-072 | 3 | | | Plate-088 | 3 | | | Plate 35120° | 4 | | | Plate 45° | 4 | | | Plate 79-B | 4 | | | Triangle plate 68 | 4 | | | Cuttable linkage | 10 | | | Square beam-136 | 4 | | | Slide beam-016 | 4 | | | Slide beam-032 | 4 | | | Slide beam-080 | 4 | | | Slide beam-128 | 2 | | | Slide beam-160 | 2 | | | Slide beam-224 | 2 | | | Slide beam-320 | 2 | | | Beam-036 | 4 | | | Beam-076 | 2 | | | Beam-092 | 2 | | | Beam-124 | 2 | | | Beam-136 | 4 | | | Beam-156 | 2 | | | Sliding block A1 | 2 | | | D shaft 456 mm | 4 | | | Threaded shaft 439 mm | 4 | | | Shaft collar 4 mm | 8 | | | Shaft connector | 4 | | | Headless screw M35 | 20 | | | Screw M48 | 50 | | | Screw M414 | 30 | | | Screw M430 | 25 | | | Flat cross screw M38 | 10 | | | Hex lock nut M4 | 16 | | | Hex nut M4 | 64 | | | Plastic rivet-R4060 | 20 | | | Plastic rivet-R4120 | 30 | | | Plastic ring 4710 mm | 12 | | | Brass stud M416+6 | 4 | | | Wrench 5 mm & 7 mm | 1 | | | Hex key 1.5 mm | 1 | | | Screwdriver hex 2.5 mm & cross | 1 | | | Screw box | 1 | | | Aluminum sleeve 464 mm | 8 | | | Flange bearing 483 mm | 6 | | | Double gear rack 31T | 6 | | | Universal wheel | 2 | |
4. About the competition
MakeX is an international robotics competition and education platform that promotes multidisciplinary learning within the fields of science and technology. It aims at building a world where STEAM education is highly appreciated and where young people are passionate about innovation by engaging them in activities such as exciting robotics competitions, STEAM carnivals, tech events, and educational conferences.
MakeX Explorer is a competitive event for elementary and junior high school students aged 8-15 years. The event blends the excitement of sports with the intellectual challenge of robot design. It's not just an event, but a captivating spectacle. Participants are tasked with creating robots from scratch, an exercise that hones their skills in robot design, mechanical construction, and programming. Furthermore, the team-based structure of the event fosters strategic thinking and problem-solving abilities among the contestants.
To view information about registration, entry requirements, and available competitions, visit www.makex.cc/en or contact us by email: makex_overseas@makeblock.com (overseas)
makex@makeblock.com (China)
