Introduction to the MakeX Starter Frame Expansion Kit V2.0
1. Basic information
MakeX Starter Frame Expansion Kit V2.0
| Name | MakeX Starter Frame Expansion Kit V2.0 |
|---|---|
| SKU | P1090046 |
| EAN | 6928819513631 |
| Package type | Paper box |
| Package size | 290223100 mm |
| 1220135120 mm | |
| Gross weight (including packaging) | 10.1kg (356.3oz) |
| Others | Remote control and battery not included |
2. Overview
For the 2022 MakeX Starter competition, we have 2 different sets of arena and a newly upgraded frame expansion kit for users with different needs.
If you have purchased the** 2022 MakeX Starter Arena **and want to have a better contest experience with a frame, or if you are hosting MakeX competitions, which require standard frames, then you can purchase MakeX Starter Frame Expansion Kit V2.0 as an add-on.
Version statement
- To reduce the time spent in arena assembly, and to avoid discrepancy in referee review due to incorrect arena orientation, we standadize the length of the flat beams for the 2022 season.
- The MakeX Starter Frame Expansion Kit V2.0 uses only 1126mm flat beams, replacing the 1173mm flat beams of Kit V1.0. This makes Kit V2.0 shorter in width by 54mm compared to** Kit V1.0**.
Difference in usage scenarios
The differences in the usage scenarios between Kit V1.0 and Kit V2.0 are as follows:
| Practice | Hosting competitions | MakeX competitions | |
|---|---|---|---|
| Kit V1.0 | Supports | Supports | Not support |
| Kit V2.0 | Supports | Supports | Supports |

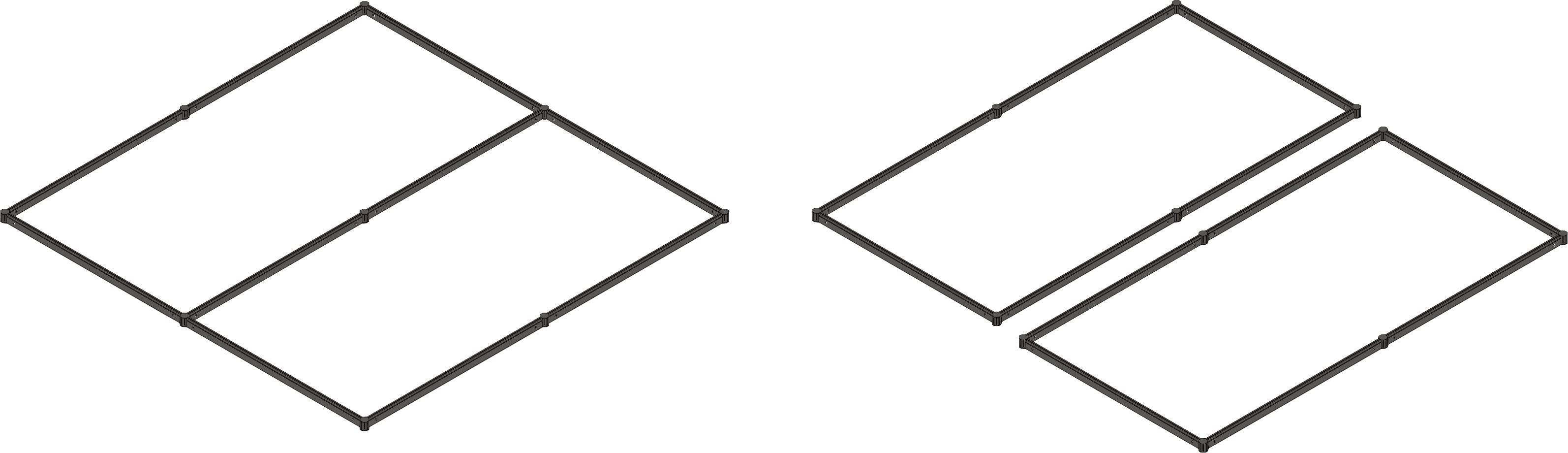

"Double frame" mode
Ideally, you should build a complete 2022 MakeX Starter arena on a field of approximately 2.44*2.44m as shown in assembly instruction.
But in many cases, you may not have a large enough field. Therefore, we give you 2 extra flat beams in the Kit V2.0, so you can build 2 complete "0" shaped frames. Although this will be different from the final "8" shaped arena, it will help you teach and practice for the MakeX Starter competition in a more flexible field.
3. Parts list
Make sure the following parts are included in the kit. If there is any missing part, contact our after-sales service or distributors.
| Name | MakeX Starter Frame Expansion Kit V2.0 |
|---|---|
| Wrench 5&7 | 1 |
| Scredriver Cross&2.5mm | 1 |
| Plate 3*6 | 1 |
| Screw M4*14 | 10 |
| Hex Nut M4 | 8 |
| Octagonal Pillar-45 | 12 |
| Octagonal Pillar Cover | 24 |
| Flat Beam Lock | 24 |
| Handled Hex Allen Key | 1 |
| Plate-184 | 1 |
| Rectangular Nut M4 | 5 |
| Flat Beam 550-1126 | 12 |
| MakeboX Bracket | 1 |
4. Assembly instruction
After checking the number of parts, refer to the following document to assemble the 2022 MakeX Starter Arena. 2022 MakeX Starer零碳行动场地搭建步骤图_说明书_V1.0_D1.1.2_KD010419000_view.pdf
5. More information
Getting started with the 2022 MakeX Starter Educational Competition Kit：makeblock.com/en/docs/cyberpi/22starter-start mBlock online help：makeblock.com/en/docs/cyberpi/mbot2-mobile-coding mBot2 operation guide: makeblock.com/en/docs/cyberpi/mbot2-start mBot2 operation guide: makeblock.com/en/docs/cyberpi/mbot2-start Introduction to the 2022 MakeX competitions and kits：makeblock.com/en/docs/cyberpi/22makex
